Shanghai FG Bar × Clair Brothers: Crafting a Premium Live Music Venue

Nestled in the core commercial district of Shanghai Yuyuan, FG Bar is positioned as a live band-focused venue. Centered on full-band live performances, acoustic instrumental shows and pop live gigs, it distinguishes itself from traditional EDM bars by delivering high-fidelity, fully restored and immersive live music experiences. Targeting music enthusiasts and young audiences, FG Bar creates a high-end relaxing live entertainment space within the bustling downtown area. Featuring an open layout and concentrated viewing areas, the venue imposes extremely professional requirements on vocal intelligibility, instrumental layering, sound field uniformity and dynamic performance.

Adhering to the core positioning of live band performance and original sound restoration priority, the entire sound reinforcement system is fully equipped with premium professional touring audio gear from the world-renowned brand Clair Brothers. Based on the venue’s architectural structure and audience viewing layout, we adopted a professional performance-grade sound reinforcement architecture: main array coverage + center vocal focusing + stage lip fill monitoring + full-site auxiliary supplementation + high/low-frequency layered enhancement.

The solution specifically optimizes acoustic pain points in live band performances. Through functional differentiation of diversified speaker models, the system achieves high separation between vocals and instruments, authentic sound reproduction, zero dead-angle sound coverage and sufficient dynamic headroom. It supports high-intensity, full-dynamic band live shows while adapting to daily ambient background music, perfectly matching the operational demands of a high-end live music bar.

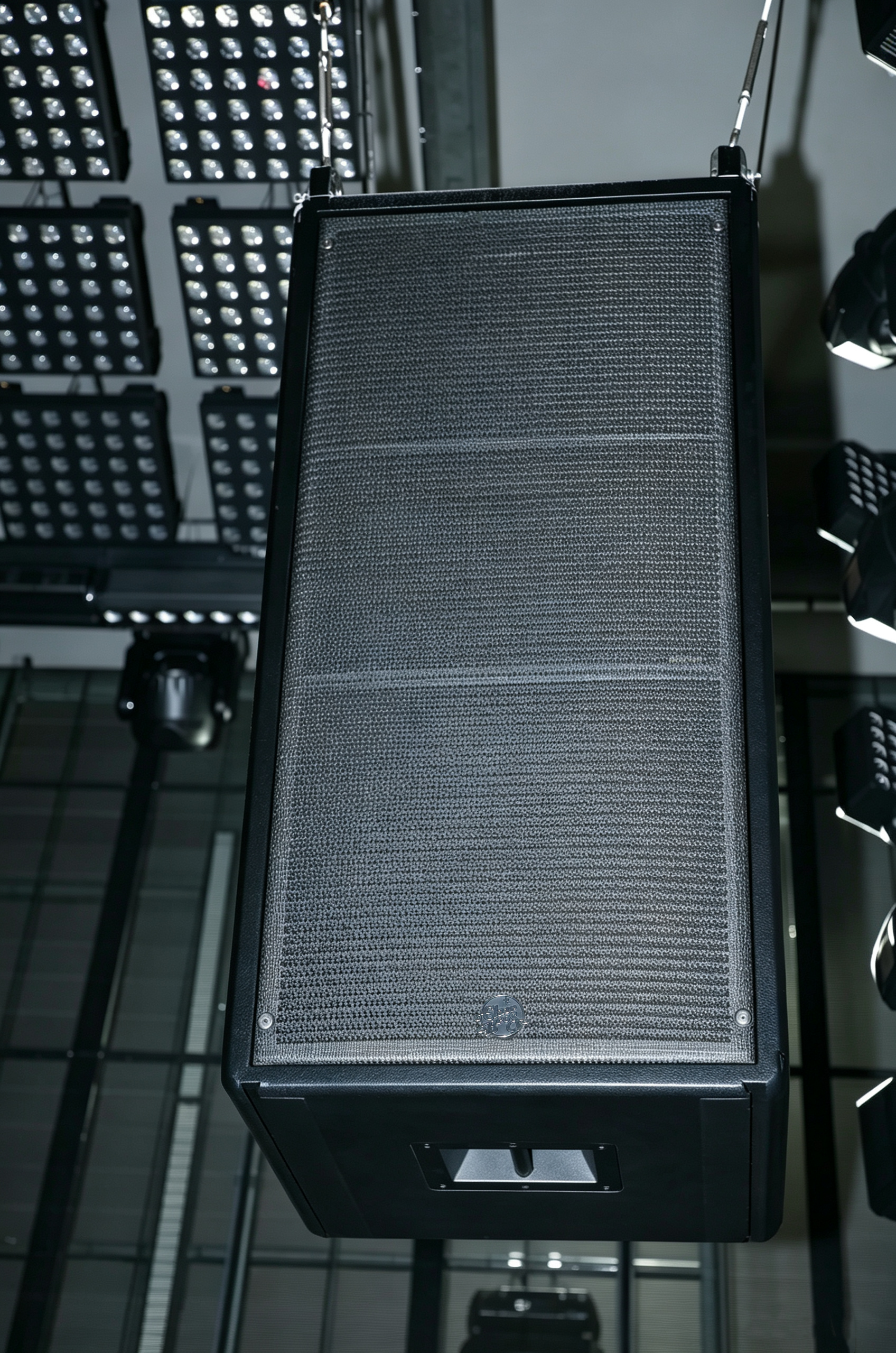

As the venue’s main loudspeaker, the Clair Brothers R4-IV is a classic three-way professional touring speaker. Equipped with a single 18-inch low-frequency driver plus independent mid-frequency and high-frequency units, its dedicated three-way design effectively avoids frequency band interference and delivers extensive dynamic range and balanced frequency response. With sufficient sound pressure and neutral, authentic sound reproduction, it presents solid and rich mid-frequency details, accurately restoring lead vocals as well as core tones of guitars and keyboards. The low frequency is steady and clean, while the high frequency is transparent and non-abrasive.

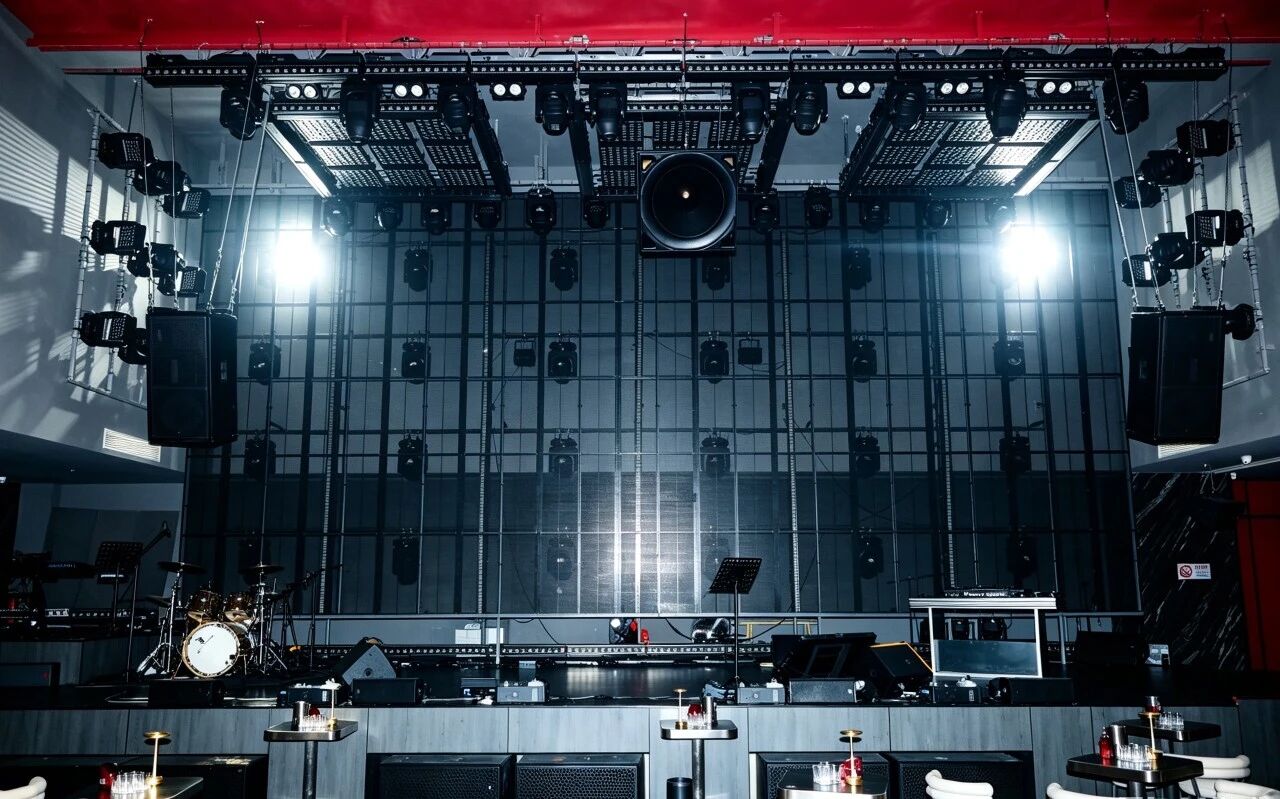

Symmetrically mounted on both sides of the stage, the R4-IV main speakers provide full coverage for the core viewing area, scattered seats and main booth zones. They effectively eliminate sound attenuation in mid-to-far fields, ensure consistent timbre and balanced sound pressure across the main audience area, and build a stable and professional foundational sound field for all live band performances.

The 15CX-P is a high-end professional coaxial horn speaker fitted with a 15-inch low-frequency driver and a 3-inch high-frequency compression driver. Featuring a precise 60°H × 60°V coaxial coverage pattern, its unified sound source completely solves phase deviation and vocal divergence issues found in conventional speakers, delivering outstanding vocal focusing and exceptional detail resolution.

Mounted centrally above the stage, the 15CX-P specially enhances vocal performance at the stage center, capturing delicate articulation and vocal nuances. It optimizes the tonal texture of solo instruments, resolves common problems such as vocal masking and hollow central sound fields in band performances, and significantly boosts the immersion and professionalism of on-site live shows.

The FF2-hx is a professional compact full-range fill speaker specially designed for near-stage monitoring. With a compact enclosure, pure sound quality and outstanding vocal expression, it is optimized for close-range stage monitoring and fill applications. Installed along the stage front lip and facing the band and vocalists, it delivers clear and accurate on-stage monitoring for performers.

It effectively prevents unbalanced audio monitoring and unclear instrumental/vocal feedback for musicians, enabling the band to precisely control rhythm, pitch and performance details. This ensures stable and complete live renditions without interfering with the audience’s sound field.

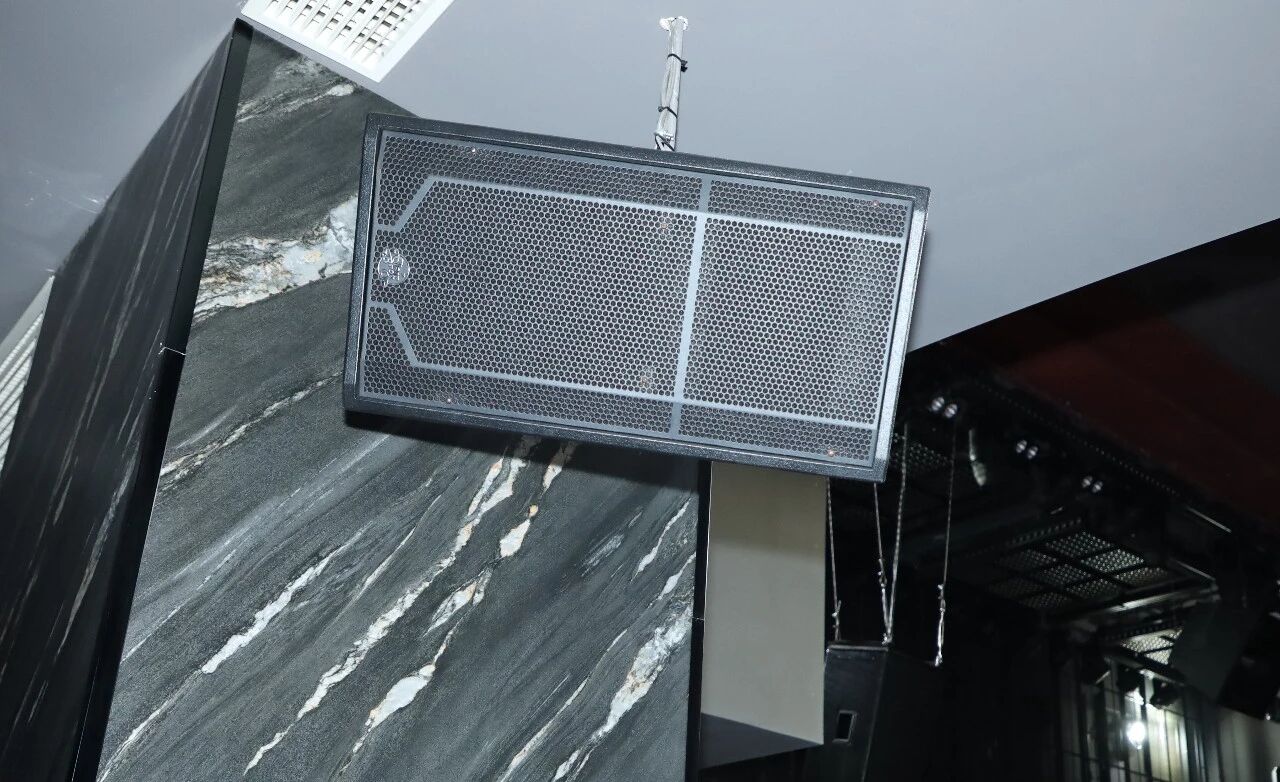

The kiT15 is a high-performance two-way full-range speaker equipped with a 15-inch low-frequency driver and a professional high-frequency compression unit. With a controllable 90°H × 40°V coverage angle, it delivers balanced, mild and highly adaptable sound with excellent compatibility for both vocals and various musical instruments. kiT15 units are evenly deployed on side walls and rear blind zones where main speaker coverage is insufficient.

These auxiliary speakers fill sound field blind spots, balance sound pressure differences between near and far areas, and fix thin, incomplete sound in corner booths. They realize uniform 360° full-site sound coverage with rich layered details, further enriching the three-dimensional sound field and ensuring consistent auditory experience throughout the venue.

The low-frequency system adopts a dual-model professional subwoofer combination to perfectly match low-frequency demands of drum kits and bass instruments. The CS218 dual 18-inch subwoofer features a premium birch wood enclosure, delivering deep low-frequency extension, strong explosive power and stunning dynamics. It undertakes full-site large dynamic low-frequency paving and reproduces the powerful texture of kick drums and the rhythmic foundation of bass guitars. The CS18M single 18-inch subwoofer provides precise and elastic low-frequency fine supplementation, optimizing frequency transition and avoiding low-frequency turbidity and resonance distortion.

Complementing each other with divided functions, the two subwoofer models deliver powerful low-frequency impact for rock and pop band styles while maintaining soft and delicate low-frequency texture for light music and acoustic ballads. They achieve accurate full-scene low-frequency output and create a three-dimensional, full and well-layered overall sound field.

After system installation, the technical team conducted precise calibration of full-site sound field, frequency response, phase and sound pressure uniformity via professional acoustic testing equipment. Targeting live band scenarios, we optimized mid-band vocal clarity, high-frequency instrumental details and high/low-frequency transition smoothness, corrected on-site acoustic reflection defects, and eliminated howling, distortion and uneven sound coverage.

Adopting a full set of Clair Brothers professional touring audio equipment with scientific layout and refined acoustic tuning, the FG Bar sound reinforcement project perfectly matches the venue’s core positioning for live band performances. The system features uniform sound coverage, professional and authentic sound restoration, transparent and clean vocals, distinct instrumental layers and elastic low-frequency response, fully adapting to diverse band music styles.

Compared with traditional bar audio systems, this customized solution effectively solves industry pain points including vague vocals, instrumental confusion, insufficient dynamic headroom and sound blind spots in live band performances. Balancing professional performance texture and casual ambient atmosphere, it delivers an immersive, high-fidelity live audio-visual experience. Empowering FG Bar as a distinctive high-end live band entertainment landmark, the project has gained high recognition from the venue owner and professional performance teams.
