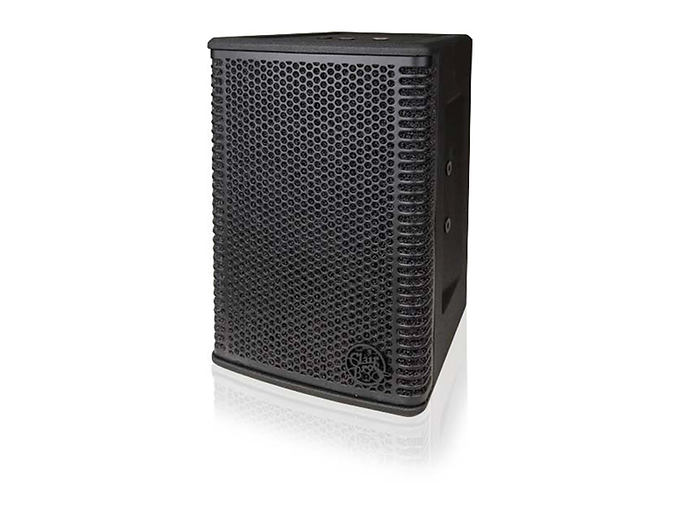

Clair Brothers 8CX loudspeaker has been
designed as a hi-fidelity, small-format point
source speaker. The frequency response is
full range, 88Hz–20,000Hz, allowing for use
for speech and music reproduction. The 8CX
features the latest in neodymium coaxial
transducer technology with a pair of options
in horizontal dispersion angles. A 100° conic
horn is available and best suited for near field
coverage applications and a 70° conic constant
directivity horn is also available for applications
requiring tighter coverage and increased
projection. The dispersion specification is noted
in the following unique product ID’s: 8CX-P100, 8CX-P-70.
The 8CX features a SpeakOn In/thru connectors
as well as a single two-position terminal strip.
An internal passive crossover network provides
third-order filtering allowing for exceptionally
clear output with remarkable coherence through
the crossover region. The 8CX is well suited for
front fill applications with full PA systems just
as it is equally well equipped to stand alone as
a main speaker in a smaller environment.

Mechanical & Accessories:
One of the truly amazing facts about the
8CX is the seemingly unlimited number of
ways to rig and/or mount utilizing a family
of mounting accessories. The 8CX has (12)
integral mounting points (M10 x 1.5 thread)
and an integrated standard pole mount. The
accessories include yoke mounting brackets for
both vertical and horizontal mounting positions
as well as tilt adaptors to enable pan and tilt
in either configuration. The brackets also have
a companion pole mount socket to allow
unrestrained pan and tilt when used as a pole
mount speaker. Additional accessories include:
threaded stud plates, pipe clamp mounts, chain
rigging points, vesa tilt mount and array mode
top-bar plates.
The 8CX is well suited for down-firing
applications, such as large convention centers
or high ceiling commercial spaces. In particular,
the pair of mounting points available on each
panel of the cabinet are spaced at the same
spacing as slots on standard ‘unistrut’ hardware,
allowing for exceptional compatibility in
commercial integration projects. Please contact
Clair Brothers for more information regarding
coverage area planning and simulation.
