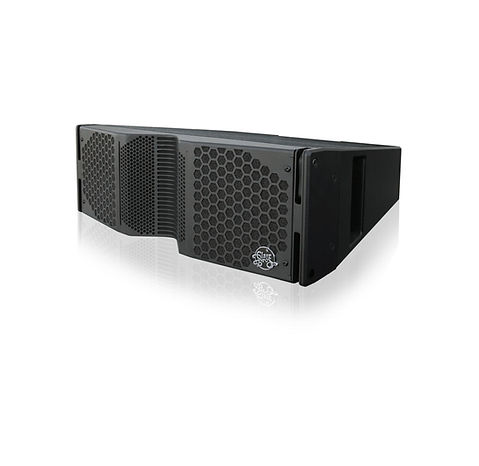

The C10-M is the latest innovation in line array
technology. It incorporates an advanced transducer
technology for both midrange and high frequency
reproduction, both of which join a common waveguide.
At least two amplifier channels are required, one
for low freq., one for mid/hi which is coupled via an
internal passive crossover network.
The centrally located mid/high section provides 15°
vertical coverage and variable horizontal coverage. The
horizontal pattern may be altered to optimize coverage
within the context of the application. The horizontal
coverage angle may be defined symmetrically or
asymmetrically by standard angles between 70° and
120° in 10° increments or may be custom configured
with continuously variable Clair TrueFit waveguides.
The horn and waveguides are constructed, as all Clair
waveguides are, with CNC machined Baltic birch
plywood. This is symmetrically flanked by the C10-M
low frequency sections. Each 10” low frequency driver
is front loaded in its own tuned reflex chamber.
The C10-M speaker cabinet is designed to provide
exceptional intelligibility and is capable of a frequency
response of 50Hz–20kHz.

The C10-M speaker cabinet is designed to provide
exceptional intelligibility and is capable of a frequency
response of 50Hz–20kHz.
The C10-M has one of the most versatile, quick
and easy to use rigging systems in the industry
today. Each enclosure is equipped with structurally
integrated bimodal rigging to allow for quick coverage
angle adjustments for multiple venue arrangements.
Rear rigging hardware allows for angle adjustments
between 0 and 15 degrees at 1 degree increments.
The C10 cabinet shares the same width as the C8 (dual
8” array) and CS118 (single 18” subwoofer) allowing
for simple systematic compatibility and minimal
adaptation accessories.
As with all Clair Brothers products, the C10-M is
constructed of the finest Baltic birch plywood and
finished with a rugged exterior epoxy to withstand the
most demanding conditions.
The speaker grille is constructed of high-grade 14
gauge perforated steel and finished with a commercial
grade powder coat finish.
