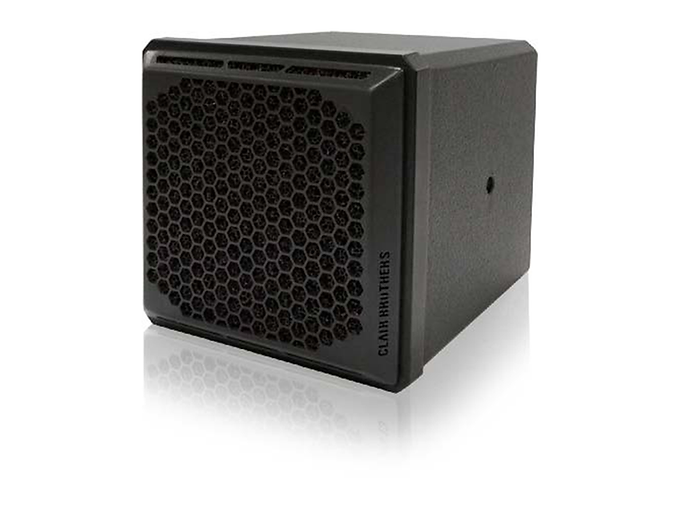

The Clair Brothers FX is a full range, passive
coaxial loudspeaker. FX is extremely compact
(4.75” height, 5.07” width) and provides an
economical solution for distributing audio in any
small venue. It is small enough to blend in with
architectural features in your restaurant or club,
while delivering high quality audio to a wide
coverage area.
The FX’s combination of form and function
makes it the ideal choice for small theater fills,
distributed paging and music systems, museum
exhibits, conference rooms and more. The FX
has many mounting and color options making it
perfect for any project.

When you need quality audio that disappears
into the décor, the FX is the smart choice.
As with all Clair Brothers products, the FX is
constructed of the finest Baltic birch plywood
with a rugged epoxy mastic finish to withstand
the most demanding conditions.
The speaker grille is constructed of perforated
steel and backed with a high-grade reticulated
foam

AUDIO SPECIFICATIONS

Loudspeaker Type   Passive

Full Range, Coaxial

Frequency Response

Single Cabinet

-10 dB Point

152Hz–20kHz
100Hz
Recommended Power Amplifier   100W Peak @ 8 Ohms
Sensitivity(1Watt @ 1 Meter)

Full Range

88 dB SPL

Maximum Output

Cont.
Peak

100 dB SPL
103 dB SPL

Drivers Full Range /
Coaxial
(1) 4 in. (101.6mm) Woofer
with 3/4” Silk Dome Tweeter
Nominal Impedance Full Range

8 Ohms

Power Handling



Cont.
Peak

25W
50W

Dispersion





100° H x 100° V (Conic)



Input Connection

Standard

Optional

(1) 2-Position Terminal Strip
(1) 1/4 Strat Jack Plate



MECHANICAL SPECIFICATIONS

Enclosure

Shell

Finish

12mm Baltic Birch
Black Epoxy Mastic

Rigging
Grille   Perforated Steel, Foam Backed
Dimensions Height
Width
Depth
4.75 in. (120.7mm)
5.07 in. (128.7mm)
5.48 in. (139.2mm)
Weight   3 lbs. (1.4kg)
Shipping Weight   |TBD|
