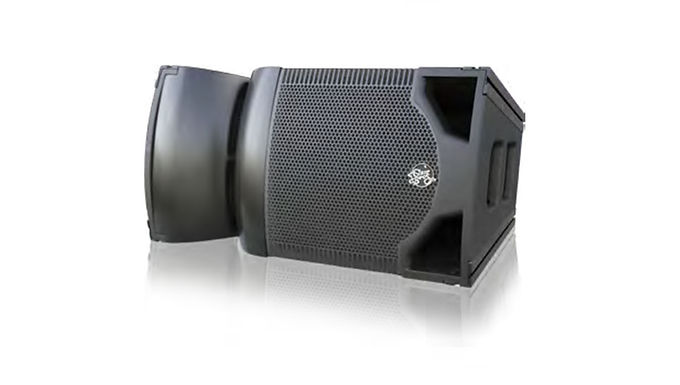

kiTCURVE12 is a full range, curved array high
output loudspeaker ideal for speech and music
reproduction. The kiTCURVE12 is one of Clair
Brothers most versatile full range speakers.
kiTCURVE design technology is rooted in Clair
Brothers CAT (Curved Array Technology). The
kiTCURVE combines the arrayability of the CAT with
the portability and versatility of the kiT Series.
Exceptional intelligibility, high output performance
and durability make the kiTCURVE12 an excellent
choice for virtually any indoor or outdoor application.
The kiTCURVE12 has been engineered for optimal
individual performance or as part of a multiple
cabinet system with added flexibility to mount
vertically or horizontally, or on pole mount with
subwoofer base.

The cabinet features a custom OEM 12” transducer
and two 1.4” exit/3” voice coil diameter high
frequency drivers coupled to a 90º H x 15º V
constant curvature, constant directivity horn that
delivers naturally smooth uniform coverage in both
near-field and medium throw applications. Multiple
cabinets may be arrayed, up to 5 high when flown,
to create a seamless vertical coverage of 75°.
The kiTCURVE12 may be amplified using one of
several different CB amplified controller platforms,
in all cases, the kiTCURVE12 is bi-amplified. There
are several different factory presets that allow
the user to achieve an optimized starting point for
single cabinet or array mode applications. The rear
panel of the enclosure includes an input connector
panel with (1) EP-4 Male, (1) EP-4 Female and (1)
4-Position terminal strip. The kiTCURVE may be
upgraded to the powered version, the kiTCURVE12+
by simply exchanging the connector panel for the
kiTCURVE12+ amplifier module assembly.
For a cabinet of its size the kiTCURVE12 offers
extremely efficient low-end response to 51Hz.
As with all Clair Brothers products, the kiTCURVE12
is constructed of the finest Baltic birch and finished
with a rugged polyurea coating to withstand the
most demanding conditions.The speaker grille is
constructed of high grade 14 gauge perforated
steel with a powder coated finish.
