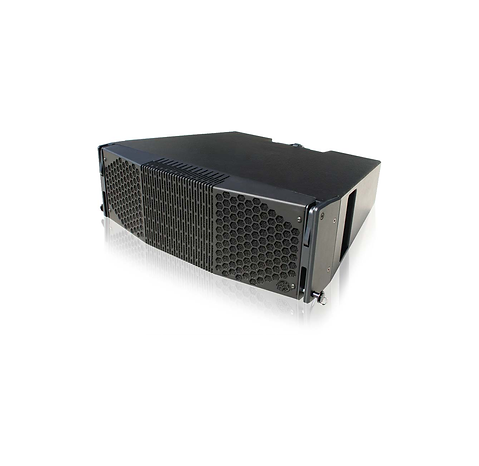

i208-M
General Description
The i208-M is the latest innovation in mobile compact line array technology from Clair Brothers. The i208-M incorporates a proven approach to low/mid frequency symmetry first introduced in the Clair Brothers CAT™ system.
The centrally positioned high frequency waveguide couples to a modular horizontal waveguide providing optimum custom tailoring for horizontal dispersion. Standard module is 120 degrees and 90 degrees is optional. This modular section is flanked by the low frequency and low/mid frequency components. Each 8 inch low and low/mid frequency driver is front loaded in its own tuned reflex chamber.
The i208-M speaker cabinet is designed to provide exceptional intelligibility and is capable of a frequency response of 60Hz–20kHz.
The i208-M has one of the most versatile, quick and easy to use rigging systems in the industry today. Each enclosure is equipped with structurally integrated bimodal rigging to allow for quick coverage angle adjustments for multiple venue arrangements. Rear rigging hardware allows for angle adjustments between 0 and 10 degrees at 0, 2.5, 5, 7.5 or 10 degree increments.
As with all Clair Brothers products, the i208-M is constructed of the finest Baltic birch plywood and finished with a rugged exterior epoxy to withstand the most demanding conditions.
The speaker grille is constructed of high-grade 14 gauge perforated steel and finished with a commercial grade powder coat finish.
AUDIO SPECIFICATIONS
Loudspeaker Type
Line Array Element
Three-Way Active
Frequency Response (+/- 2dB)
Single Cabinet
60Hz–20kHz
Recommended Power Amplifier
1000–1300W @ 8 Ohms
Sensitivity (1 Watt @ 1 Meter)
103 dB SP
Maximum Output
Cont
Peak
129 dB SPL
132 dB SPL
Drivers
LF
LF/MF
HF
(1) 8 in. (203.2mm)
(1) 8 in. (203.2mm)
(1) Exit 1.4 in. (35.6mm);VC diameter 3.0 in. (76.2mm)
Nominal Impedance
LF
LF/MF
HF
8 Ohms
8 Ohms
16 Ohms
Power Handling
Program
Peak
(LF) 400W; (LF/MF) 400W; (HF) 220W
(LF) 800W; (LF/MF) 800W; (HF) 440W
Dispersion
Standard
Optional
120° H x 10° V
90° H x 10° V
Input Connection
(2) EP-8 Connectors (1 Male, 1 Female)
MECHANICAL SPECIFICATIONS
Enclosure
Shell
Finish
18mm Baltic Birch
Black Epoxy Mastic
Grille
Perforated Steel, Foam Backed
Dimensions
Front Height
Rear Height
Width
Depth
9.16 in. (232.5mm)
5.62 in. (142.7mm)
28.87 in. (733.2mm)
23.88 in. (606.5mm)
Weight
62 lbs. (28.1kg)
Shipping Weight
71 lbs. (32.2kg)
