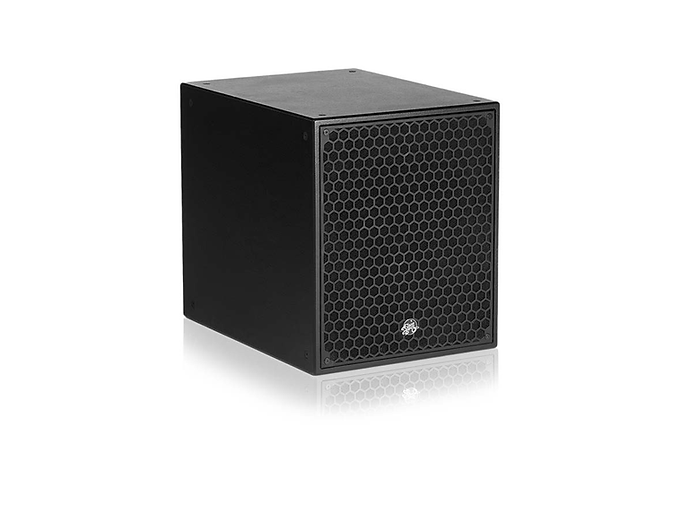

The Clair Brothers CS18-II is a newly designed
sub-low frequency loudspeaker. The CS18-II
provides maximum sub bass reinforcement
proportional to its size which is ideal for a
variety of fixed installations where spacesaving is a consideration.
Its compact size makes it a perfect companion
for a variety of Clair Brothers full range
installation loudspeakers such as CAT214, R2,
R3, R4 and FF2 series.
The CS18-II is designed with a single high
output transducer that delivers a usable inroom frequency response down to 32 Hz.
The specially coated 18 in. cone provides
exceptional linear excursion. The result is
a high power handling, high performance
subwoofer that provides tightly controlled lowfrequency extension.

As with all Clair Brothers products, the CS18-II
is constructed of the finest Baltic birch plywood
with a rugged epoxy finish to withstand the
most demanding conditions.
The speaker grille is constructed of a durable
14 gauge steel which is powder coated and
backed with a high grade reticulated foam.

AUDIO SPECIFICATIONS

Loudspeaker Type

Single Driver Subwoofer

Frequency Response (+/-2dB)

Single Cabinet

-10 dB Point

39Hz–180Hz
32Hz
Recommended Power Amplifier   1200–1800W @ 8 Ohms
Sensitivity(1Watt @ 1 Meter)

LF

100 dB SPL

Maximum Output

Cont.
Peak

128 dB SPL
131 dB SPL

Drivers LF (1) 18 in. (457.2mm)
Nominal Impedance LF

8 Ohms

Power Handling



Peak

1400W

Dispersion





Input Connection Standard
Optional
(2) EP-4 Connectors (1 Male, 1 Female)
(1) 2-Position Terminal Strip



MECHANICAL SPECIFICATIONS

Enclosure

Shell

Finish

18mm Baltic Birch

Black Epoxy Mastic

Grille   Perforated Steel, Foam Backed
Dimensions Height
Width
Depth
21.29 in. (540.8mm)
25.11 in. (637.7mm)
28.50 in. (723.9mm)
Weight   128 lbs. (58.1kg)
Shipping Weight   143 lbs. (64.9kg)
Rigging Attachments   (16) 3/8 in. Suspension Points
