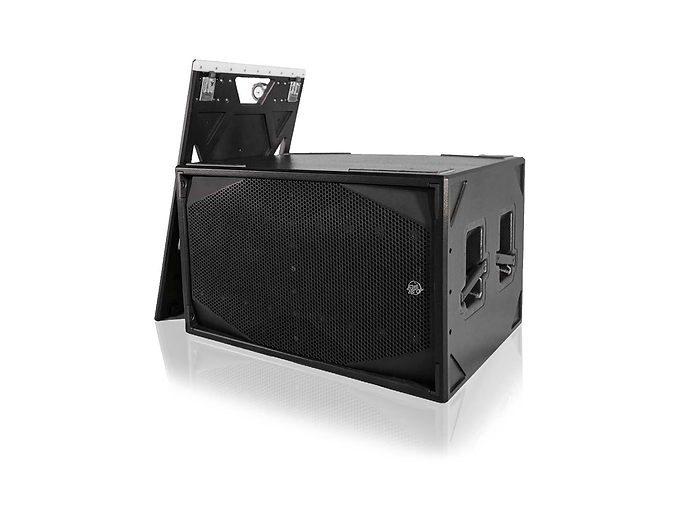

The Clair Brothers CS218-M is the latest dual
18” sub-low frequency loudspeaker designed
to provide maximum sub bass reinforcement
and low frequency augmentation in mobile
applications.
The CS218-M’s high-output makes it an ideal
companion for a variety of Clair Brothers’ full
range loudspeakers such as i212, CAT214, R3T
and R4.
The two complementary 18“ transducers and
ports minimize thermal power compression and
airflow turbulence for unmatched performance.
The 18” transducers have weather-resistant
cones with exceptional linear excursion.
The result is a high power handling, highperformance subwoofer that provides tightly
controlled low frequency extension.

As with all Clair Brothers products, the CS218-M
is constructed of the finest Baltic birch plywood
with a rugged epoxy mastic finish to withstand
the most demanding conditions.
The speaker grille is constructed of a durable
14 gauge steel which is powder coated and
backed with a high-grade reticulated foam.
Four ergonomically designed handles and an
integrated dolly board facilitate transport.

AUDIO SPECIFICATIONS

Loudspeaker Type

Dual 18in. Sub-Low

Frequency Response (+/-2dB)

Single Cabinet

-10 dB Point

38Hz–180Hz
32Hz
Recommended Power Amplifier   2400–4800W @ 4 Ohms
Sensitivity(1Watt @ 1 Meter)

LF

103 dB SPL

Maximum Output

Cont.
Peak

131 dB SPL
134 dB SPL

Drivers LF (2) 18 in. (457.2mm)
Nominal Impedance LF

(2) 8 Ohms

Power Handling



Nominal
Peak

1400W
2800W

Dispersion





Input Connection Standard (2) EP-4 Connectors
(1 Male, 1 Female)



MECHANICAL SPECIFICATIONS

Enclosure

Shell

Finish

18mm Baltic Birch

Black Epoxy Mastic

Grille   Steel (backed w/ Acoustically
Transparent Water-Resistant Fabric)
Dimensions Height
Width
Depth
25.42 in. (645.6mm)
42.23 in. (1072.6mm)
28.50 in. (724.0mm)
Weight   69 lbs. (31.3kg)
Shipping Weight   |TBD|
Rigging Attachments   229 lbs. (103.9kg)
264 lbs. (120kg)
