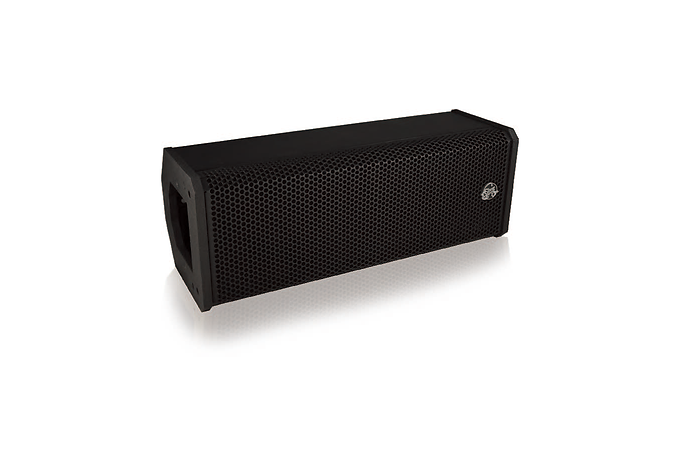

| The Clair Brothers FF2-H is a compact speaker designed for applications that require high output in close proximity or a limited space. The FF2-H measures just 8 inches high and less than 22 inches wide. The enclosure provides an unobtrusive option for listeners who do not have full benefit of the house PA or who require a near field monitor. The FF2-H has a nominal coverage pattern of 90° x 60° and is rotatable for horizontal or vertical cabinet arrangements. The low/mid frequency section utilizes a single 8” driver capable of handling 250 watts. |
The FF2-H speaker is ideal for theaters, houses of worship, cruise ships and auditoriums. The cabinet is engineered to interface successfully in any staging environment as either a portable or permanent installation model. The cabinet provides clear, distortion-free reproduction of both speech and music program material. As with all Clair Brothers products, the FF2-H is constructed of the finest Baltic birch plywood. The FF2-H weighs only 31 lbs. and features powder coated aluminum end caps to minimize cabinet wear for long life. The speaker grille is constructed of high grade 14 gauge perforated steel with a durable powder coated finish and reticulated foam back. |
AUDIO SPECIFICATIONS
| Loudspeaker Type |
Two-Way Active |
|
| Frequency Response |
Single Cabinet |
100Hz–18kHz |
| Recommended Power Amplifier | 650W Peak @ 8 Ohms | |
| Sensitivity(1Watt @ 1 Meter) | LF HF |
100.5 dB SPL |
| Maximum Output |
Cont. |
(LF) 125.6 dB SPL; (HF) 129.3 dB SPL |
| Drivers | LF HF |
8 in. (203.2mm) 1 in. (25.4mm) |
| Nominal Impedance | LF HF |
8 Ohms |
|
Power Handling
|
Cont. |
(LF) 250W; (HF) 120W (LF) 500W; (HF) 240W |
|
Dispersion
|
Nominal -6dB |
90° H x 60° V Horn (Rotatable) |
| Input Connection |
Standard |
(2) EP-4 Connectors (1 Male, 1 Female) & (1) 4-Position Terminal Strip |
MECHANICAL SPECIFICATIONS
| Enclosure |
Shell Finish |
18mm / 12mm Baltic Birch |
| Grille | Perforated Steel, Foam Backed | |
| Dimensions | Height Width Depth |
8.00 in. (203.2mm) 21.94 in. (557.2mm) 8.54 in. (216.9mm) |
| Weight | Active Passive |
31 lbs. (14.1kg) 34 lbs. (15.4kg) |
| Shipping Weight | Active Passive |
40 lbs. (18.1kg) 43 lbs. (19.5kg) |
| Rigging | – | – |
