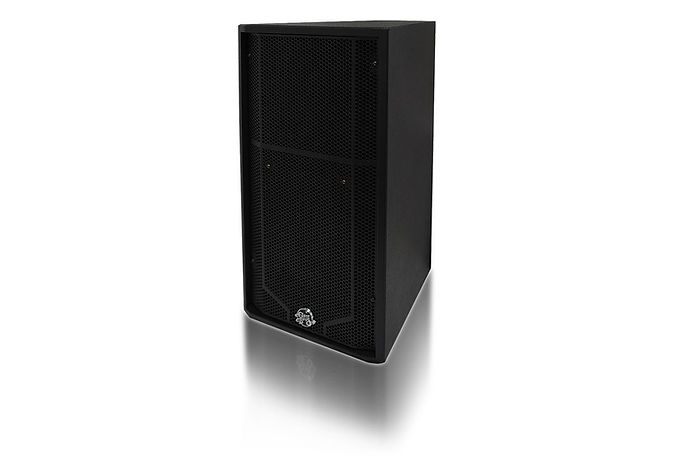

| kiT12-A is a full range, high output loudspeaker ideal for speech and music reproduction. The kiT12-A is one of Clair Brothers most versatile full range speakers. Exceptional intelligibility, high output performance and durability make the kiT12-A an excellent choice for virtually any indoor or outdoor application. The kiT12-A has been engineered for optimal individual performance or as part of a multiple cabinet system with added flexibility to mount vertically or horizontally, or on pole mount with subwoofer base. The cabinet features a custom 12” transducer and one 2” exit/3” voice coil diameter+ high frequency driver coupled to a 90º H x 40º V (or 60º H x 40º V) rotatable constant directivity horn that delivers naturally smooth uniform coverage in both near-field and medium throw applications. |
The standard model includes a rear input connector and control panel that features one male EP-4 and one female EP-4 connector as well as a 4-position terminal strip. The cabinet may be operated in either two-way active or passive modes, selected by an external pair of jumpers. A simplified installation version features only terminal strip input; similarly a weather resistant (WR) version is available with a water-tight cable pre-installed. For a cabinet of its size the kiT12-A offers extremely efficient low-end response to 63Hz. As with all Clair Brothers products, the kiT12-A is constructed of the finest Baltic birch and finished with a rugged polyurea coating to withstand the most demanding conditions. The speaker grille is constructed of high grade 14 gauge perforated steel with a powder coated finish |
AUDIO SPECIFICATIONS
| Loudspeaker Type | Mobile |
Two-Way Active / Passive |
| Frequency Response |
|
63Hz–20kHz |
| Recommended Power Amplifier | 1000-1200W @ 8 Ohms | |
| Sensitivity(1Watt @ 1 Meter) |
LF HF |
98.5 dB SPL |
| Maximum Output |
Cont. |
126 dB SPL |
| Drivers | LF HF |
(1) 12 in. (304.8mm) (1) Exit 2 in. (50.8mm); VC diameter 3.0 (76.2mm) |
| Nominal Impedance |
LF HF |
8 Ohms |
|
Power Handling
|
LF HF |
500W Cont. 150W Cont. |
|
Dispersion
|
Nominal -6dB Optional |
90° H x 40° V (Rotatable) 60° H x 40° V (Rotatable) |
| Input Connection |
Standard Install Option |
(2) EP-4 Connectors (1 Male, 1 Female) & (1) Four-Position Terminal Strip (1) Four-Position Terminal Strip |
MECHANICAL SPECIFICATIONS
| Enclosure |
Shell Finish |
18mm, 13-Ply Baltic Birch |
| Grille | Perforated Steel, Foam Backed | |
| Dimensions | Height Front Width Rear Width Depth |
28.12 in. (714.6mm) 14.80 in. (376mm) 7.75 in. (197mm) 15.20 in. (385mm) |
| Weight | 63 lbs. (28.6kg) | |
| Shipping Weight | 83 lbs. (37.6kg) | |
| Rigging | – | – |
