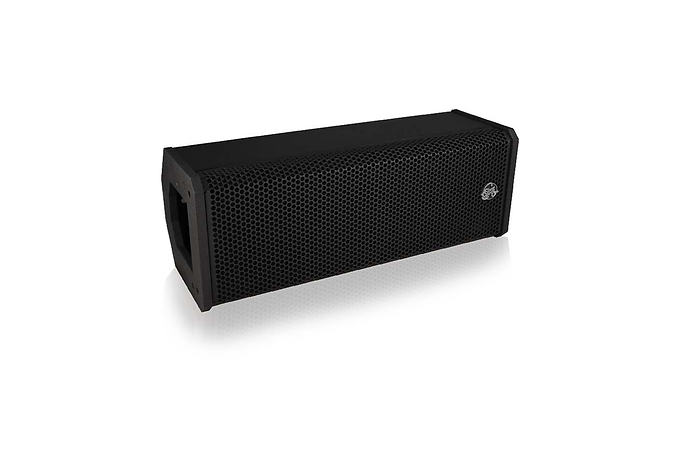

| The Clair Brothers FF2-R is a compact speaker designed for applications that require high output in close proximity or a limited space. The FF2-R measures just 8 inches high and less than 22 inches wide. The enclosure provides an unobtrusive option for listeners who do not have full benefit of the house PA or who require a near field monitor. The high frequency section utilizes an isodynamic ribbon transducer with a neodymium magnet structure. The ribbon has a nominal coverage pattern of 120°H x 10°V. The low/mid frequency section utilizes a custom single 8” driver which is augmented by dual ports. |
The FF2-R speaker is ideal for theaters, houses of worship, cruise ships and auditoriums. The FF2-R is engineered to accommodate virtually any theater or staging environment as either a portable or permanent installation model. The cabinet provides clear, distortion-free reproduction of speech and music program material. As with all Clair Brothers products, the FF2-R is constructed of the finest Baltic birch plywood. The FF2-R weighs only 27 lbs.and features powder coated aluminum end caps to minimize cabinet wear for long life. The speaker grille is constructed of high grade 14 gauge perforated steel with a durable powder coated finish and reticulated foam back. |
AUDIO SPECIFICATIONS
| Loudspeaker Type |
Two-Way Active |
|
| Frequency Response |
Single Cabinet |
100Hz–20kHz |
| Recommended Power Amplifier | 650W Peak @ 8 Ohms | |
| Sensitivity(1Watt @ 1 Meter) | LF HF |
100.5 dB SPL |
| Maximum Output |
Cont. |
(LF) 125.6 dB SPL; (HF) 115 dB SPL |
| Drivers | LF HF |
8 in. (203.2mm) Ribbon |
| Nominal Impedance | LF HF |
8 Ohms |
|
Power Handling
|
Cont. |
(LF) 250W; (HF) 30W (LF) 500W; (HF) 60W |
|
Dispersion
|
Nominal -6dB |
120° H x 10° V 1 |
| Input Connection |
Standard |
(2) EP-4 Connectors (1 Male, 1 Female) & (1) 4-Position Terminal Strip |
MECHANICAL SPECIFICATIONS
| Enclosure |
Shell Finish |
18mm / 12mm Baltic Birch |
| Rigging |
|
(3) 1/4-20 Mounting Points (rear) |
| Grille | Perforated Steel, Foam Backed | |
| Dimensions | Height Width Depth |
8.00 in. (203.2mm) 21.94 in. (557.2mm) 8.54 in. (216.9mm) |
| Weight | Active Passive |
27 lbs. (12.2kg) 30 lbs. (13.6kg) |
| Shipping Weight | Active Passive |
36 lbs. (16.3kg) 39 lbs. (17.7kg) |
| Rigging | – | – |
