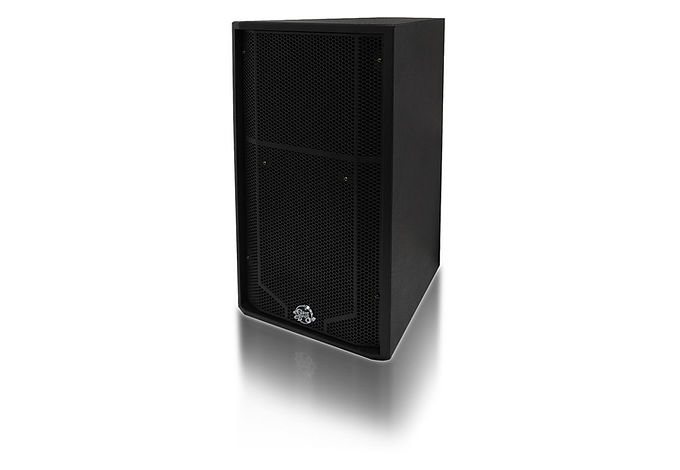

| kiT15+ is a full range, high output loudspeaker ideal for speech and music reproduction. The kiT15+ is one of Clair Brothers most versatile full range speakers. Exceptional intelligibility, high output performance and durability make the kiT15+ an excellent choice for virtually any indoor or outdoor application. The kiT15+ has been engineered for optimal individual performance or as part of a multiple cabinet system with added flexibility to mount vertically or horizontally, or on pole mount with subwoofer base. Ground stack and flown applications with companion kiT Series subwoofers are possible. The cabinet features a custom 15” transducer and one 2” exit/3” voice coil diameter+ high frequency driver coupled to a 90º H x 40º V (or 60º H x 40º V) rotatable constant directivity horn that delivers naturally smooth uniform coverage in both nearfield and medium throw applications |
The kiT15+ is powered by an integrated 2 ch. 3200W power amplifier module that includes internal DSP loudspeaker processing: Xover, EQ and Limiter. The processing is factory programmed and provides the user with the choice between four presets that are specifically designed for various applications and array configurations. High-pass filter frequency may be set per application by integrated factory presets. (See kiT+ Power Module for detailed specifications on amplifier and dsp modules). For a cabinet of its size the kiT15+ offers extremely efficient low-end response to 63Hz. As with all Clair Brothers products, the kiT15+ is constructed of the finest Baltic birch and finished with a rugged polyurea coating to withstand the most demanding conditions. The speaker grille is constructed of high grade 14 gauge perforated steel with a powder coated finish |
AUDIO SPECIFICATIONS
| Loudspeaker Type |
Two-Way Active / Passive |
|
| Frequency Response |
|
58Hz–20kHz |
| Recommended Power Amplifier | 1000-1200W @ 8 Ohms | |
| Sensitivity(1Watt @ 1 Meter) |
LF HF |
98 dB SPL |
| Maximum Output |
Peak |
131 dB SPL |
| Drivers | LF HF |
(1) 15 in. (381mm) (1) Exit 2 in. (50.8mm); VC diameter 3.0 (76.2mm) |
| Nominal Impedance |
LF HF |
8 Ohms |
|
Power Handling
|
LF HF |
700 W Cont 150W Cont. |
|
Dispersion
|
Standard Optional |
90° H x 40° V (Rotatable) 60° H x 40° V (Rotatable) |
| Input Connection |
Standard |
(2) XLRConnectors (1 XLR-F In, 1 XLR-M Thru) (2) PowerCon-20aConnectors (1 PowerIn, 1 PowerOut) |
MECHANICAL SPECIFICATIONS
| Enclosure |
Shell Finish |
18mm, 13-Ply Baltic Birch |
| Grille | Perforated Steel, Foam Backed | |
| Dimensions | Height Front Width Rear Width Depth |
28.12 in. (714.6mm) 17.70 in. (376.0mm) 8.30 in. (197.0mm) 15.25 in. (385.0mm) |
| Weight | 74 lbs. (33.6kg) | |
| Shipping Weight | 93 lbs. (42.2kg) | |
| Rigging | – | – |
