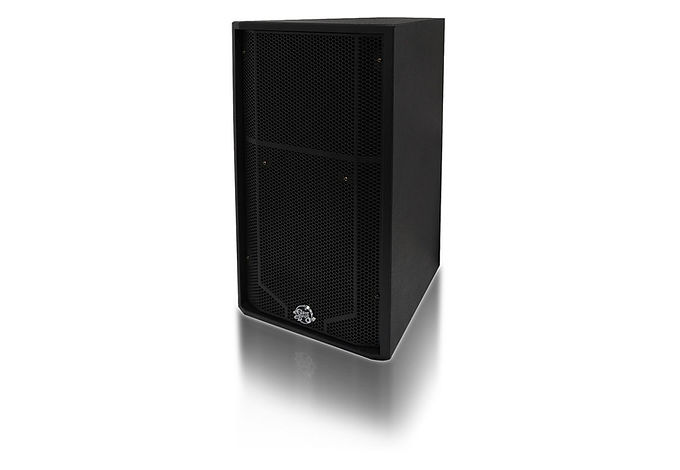

| kiT15-A is a full range, high output loudspeaker ideal for speech and music reproduction. The kiT15-A is one of Clair Brothers most versatile full range speakers. Exceptional intelligibility, high output performance and durability make the kiT15-A an excellent choice for virtually any indoor or outdoor application. The kiT15-A has been engineered for optimal individual performance or as part of a multiple cabinet system with added flexibility to mount vertically or horizontally, or on pole mount with subwoofer base. The cabinet features a custom 15” transducer and one 2” exit/3” voice coil diameter+ high frequency driver coupled to a 90º H x 40º V (or 60º H x 40º V) rotatable constant directivity horn that delivers naturally smooth uniform coverage in both near-field and medium throw applications. |
The standard model includes a rear input connector and control panel that features one male EP-4 and one female EP-4 connector as well as a 4-position terminal strip. The cabinet may be operated in either two-way active or passive modes, selected by an external pair of jumpers. A simplified installation version features only terminal strip input; similarly a weather resistant (WR) version is available with a water-tight cable pre-installed. For a cabinet of its size the kiT15-A offers extremely efficient low-end response to 63Hz. As with all Clair Brothers products, the kiT15-A is constructed of the finest Baltic birch and finished with a rugged polyurea coating to withstand the most demanding conditions. The speaker grille is constructed of high grade 14 gauge perforated steel with a powder coated finish. |
AUDIO SPECIFICATIONS
| Loudspeaker Type | Mobile |
Two-Way Active / Passive |
| Frequency Response |
|
58Hz–20kHz |
| Recommended Power Amplifier | 1000-1200W @ 8 Ohms | |
| Sensitivity(1Watt @ 1 Meter) |
LF HF |
98 dB SPL |
| Maximum Output |
Cont. |
128 dB SPL |
| Drivers | LF HF |
(1) 15 in. (381mm) (1) Exit 2 in. (50.8mm); VC diameter 3.0 (76.2mm) |
| Nominal Impedance |
LF HF |
8 Ohms |
|
Power Handling
|
LF HF |
700W Cont. 150W Cont. |
|
Dispersion
|
Nominal -6dB Optional |
90° H x 40° V (Rotatable) 60° H x 40° V (Rotatable) |
| Input Connection |
Standard Install Option |
(2) EP-4 Connectors (1 Male, 1 Female) & (1) Four-Position Terminal Strip (1) Four-Position Terminal Strip |
MECHANICAL SPECIFICATIONS
| Enclosure |
Shell Finish |
18mm, 13-Ply Baltic Birch |
| Grille | Perforated Steel, Foam Backed | |
| Dimensions | Height Front Width Rear Width Depth |
28.12 in. (714.6mm) 17.70 in. (449.6mm) 8.3 in. (210.8mm) 15.25 in. (387.4mm) |
| Weight | 76lbs. (34.5kg) | |
| Shipping Weight | 93 lbs. (42.2kg) | |
| Rigging | – | – |
