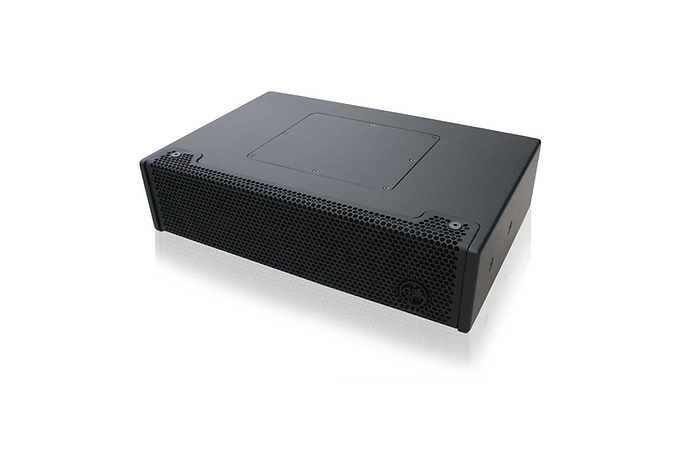

| The Clair Brothers RSS is a two-way active, full range, high output loudspeaker designed primarily as a stair speaker but can be used for a variety of permanent installations. The compact, ported cabinet delivers exceptional intelligibility for speech and music program material. The RSS is ideal for near-field and area fill uses in stair risers. Other uses include delays, columns, stage aprons and balconies. The RSS has exceptional performance in a low profile cabinet measuring a mere 5.5” x 27” x 17.5” in the installation back box. The speaker is ideal for a variety of venues including theaters, houses of worship, cruise ships and auditoriums. |
As with all Clair Brothers products, the RSS is constructed of the finest Baltic birch plywood and finished with a rugged exterior epoxy. The RSS-BB back box (which is required for in-stair mounting) is made of 14 gauge steel and has electrical knock-outs for hard-piped installations. The back box is sold separately so pre-installation can occur well ahead of final installation. Utilize the RSS-MB (Yoke/ Mounting Bracket) for a variety of mounting configurations without the back box. |
AUDIO SPECIFICATIONS
| Loudspeaker Type |
Two-Way Active |
|
| Frequency Response |
|
65Hz–18kHz |
| Recommended Power Amplifier | 800W @ 8 Ohms | |
| Sensitivity(1Watt @ 1 Meter) |
95 dB SPL |
|
| Maximum Output |
Cont. |
122 dB SPL |
| Drivers | LF HF |
(2) 5 in. (127mm) (1) 1 in. (25.4mm) |
| Nominal Impedance |
LF Passive 1 |
16 Ohms |
|
Power Handling
|
Cont. |
220W 500W |
|
Dispersion
|
Nominal -6dB | 90° H x 60° V (Rotatable) |
| Input Connection |
Standard Optional |
4-Position Terminal Strip EP-4 Connector |
MECHANICAL SPECIFICATIONS
| Enclosure |
Shell Finish |
18mm / 12mm Baltic Birch |
| Grille | Perforated Steel, Foam Backed | |
| Dimensions | Height Width Depth |
5.52 in. (140.3mm) 27.02 in. (686.4mm) 17.52 in. (445.1mm) |
| Weight | Active Passive |
24 lbs. (10.9kg) 26 lbs. (11.8kg) |
| Shipping Weight | Active Passive |
32 lbs. (14.5kg) each [Shipped in Pairs] 34 lbs. (15.4kg) each [Shipped in Pairs] |
| Rigging | – | – |
