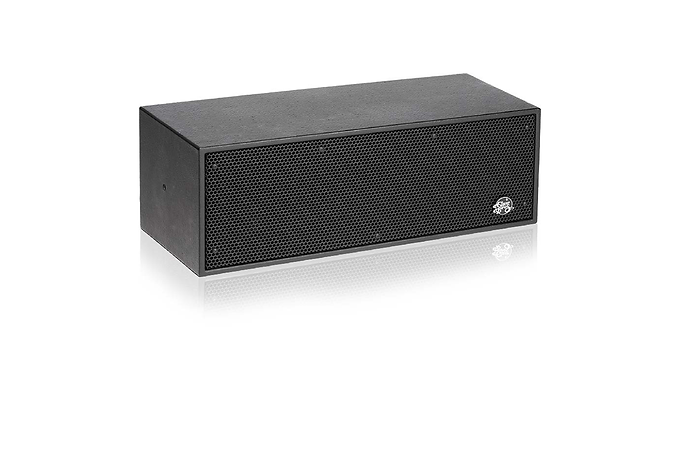

| The Clair Brothers RC80 is a two-way full range high output loudspeaker designed for a variety of permanent installations. The compact, ported cabinet delivers exceptional intelligibility for speech and music program material. The RC80 is ideal for near field and area fill uses. Other uses include delays, columns, stage aprons and balconies. The low profile design and various rigging options make the RC80 ideal for installations where space limitations are a consideration. The RC80 is also at home as a small stand-alone PA system (optional pole mount). |
The RC80 has exceptional performance in a low profile cabinet measuring a mere 12.5” x 30.1” x 10.8”. The speaker is ideal for a variety of venues including theaters, houses of worship, cruise ships and auditoriums. As with all Clair Brothers products, the RC80 is constructed of the finest Baltic birch plywood and finished with a rugged exterior epoxy to withstand the most demanding conditions. |
AUDIO SPECIFICATIONS
| Loudspeaker Type |
Two-Way Active |
|
| Frequency Response |
|
56Hz–18kHz |
| Recommended Power Amplifier | 600W @ 4 Ohms | |
| Sensitivity(1Watt @ 1 Meter) |
95 dB SPL |
|
| Maximum Output |
Cont. |
125 dB SPL |
| Drivers | LF HF |
(2) 8 in. (203.2mm) (1) 1 in. (25.4mm) |
| Nominal Impedance |
|
4 Ohms |
|
Power Handling
|
Cont. |
440W 1000W |
|
Dispersion
|
Nominal -6dB | 90° H x 60° V (Rotatable) |
| Input Connection |
Standard |
4-Position Terminal Strip EP-4 Connector |
MECHANICAL SPECIFICATIONS
| Enclosure |
Shell Finish |
18mm / 12mm Baltic Birch |
| Grille | Perforated Steel, Foam Backed | |
| Dimensions | Height Width Depth |
10.75 in. (273.1mm) 30.10 in. (764.5mm) 12.47 in. (316.7mm) |
| Weight | 48 lbs. (21.8kg) | |
| Shipping Weight | (2 total) (4 total) |
115 lbs. (52.3kg), packed as pair 211 lbs. (95.9kg), packed as quad |
| Rigging | – | – |
