WEDGE

General Description

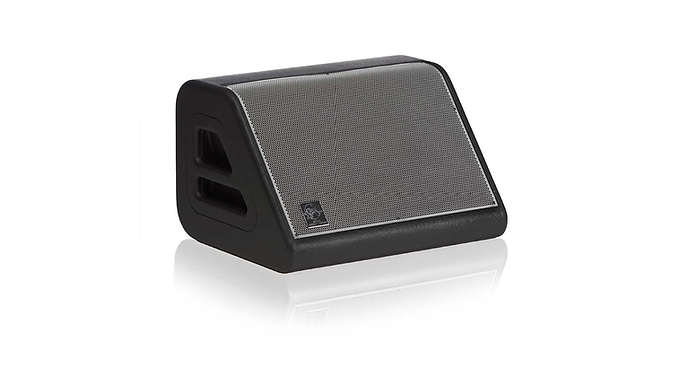

The WEDGE series stage monitor is the result of
technology advances in stage monitoring made
by Clair Brothers. Modeled after the renowned
12AM stage monitor, the same technology is
available in a cost-effective, yet sophisticated
stage monitor system.
This portable low-profile, high output system
delivers incredible SPL from a small enclosure.
The high frequency driver features a two-inch
throat diameter (three-inch voice coil diameter)
and a pure titanium diaphragm, coupled to a
proprietary patented asymmetrical horn.
A custom 12-inch cone transducer provides
clean mid-range and surprisingly extended low
frequency reproduction. Dual rear-mounted
connectors allow the use of multiple cabinets
from a single amplifier. Constructed to the same
rigid standards as Clair Brothers signature line of
touring monitors, the WEDGE is able to withstand
the requirements of any live or installed audio
application.

Cabinets are available as single units or in
mirror image pairs for stereo orientation and are
available in either an active or passive version.
Clair Brothers combines amplification and
proprietary DSP processing in portable racks for
all monitor systems. Custom cabling for systems
is also available and can be pre-wired, labeled
and delivered in road cases.
As with all Clair Brothers products, the WEDGE
is constructed of the finest Baltic birch plywood
and finished with a rugged exterior epoxy to
withstand the most demanding conditions. The
grille is constructed of 14 gauge perforated steel
with a painted finish and reticulated foam back.

AUDIO SPECIFICATIONS

Loudspeaker Type		Two-Way Active
Frequency Response		65Hz–17kHz
Recommended Power Amplifier		1200W Peak @ 8 Ohms
Sensitivity(1Watt @ 1 Meter)	LF HF	104 dB SPL 108 dB SPL
Maximum Output	Peak	131 dB SPL
Drivers	LF HF	(1) 12 in. (304.8mm) (1) 2 in. (50.8mm)
Nominal Impedance	LF HF	8 Ohms 8 Ohms
Power Handling	LF HF	300W Program 220W Program
Dispersion		Proprietary Asymmetrical
Input/Output Connections	Standard	(2) EP-4 Connectors (1 Male, 1 Female)

MECHANICAL SPECIFICATIONS

Enclosure	Shell Finish	18mm Baltic Birch Black Epoxy Mastic
Grille		Perforated Steel, Foam Backed
Dimensions	Height Width Depth	13.94 in. (354.0mm) 22.43 in. (569.7mm) 18.00 in. (457.2mm)
Weight	Active Passive	67 lbs. (30.4kg) 69 lbs. (31.3kg)
Shipping Weight	Active Passive	75 lbs. (34.0kg) 77 lbs. (34.9kg)
