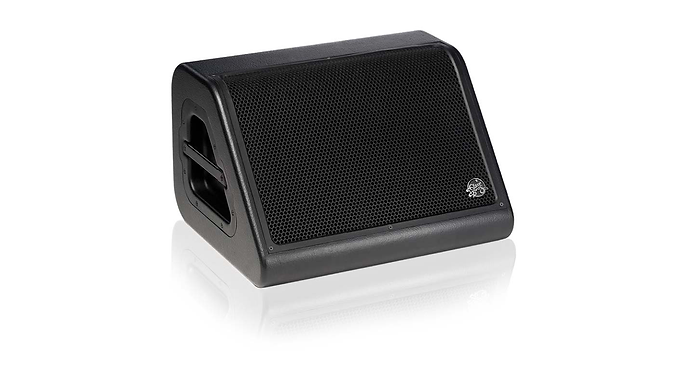

The Clair Brothers 12AM is the monitor of choice
for the world’s top entertainers. This portable,
low-profile, high output stage monitoring
speaker delivers incredible SPL, exceptional vocal
reproduction, and unprecedented low frequency
reproduction from a small enclosure. Designed for
bi-amplification and custom processing (utilizing
Clair Brothers amplification and processing), the
12AM is in a class by itself. No other product can
duplicate its combination of performance, size
and packaging.
The high frequency compression driver features a
2” throat diameter (4” voice coil diameter), a pure
titanium diaphragm, and a neodymium magnet
assembly. The driver is joined to proprietary
asymmetrical horn for exceptional intelligibility. A
custom 12” cone transducer provides mid-bass
and low frequency reproduction. The combination
of our professional high-output components
deliver exceptional performance and unique
directional characteristics.

Dual rear mounted EP-4 connectors (both male)
allow the use of multiple cabinets from a single amplifier. Low profile styling and flush mounted
side handles provides great aesthetic appeal
and portability. The speaker grille is constructed
of high grade 14 gauge perforated steel and is
specially treated to create a durable exterior
finish.
Clair Brothers combines amplification, and
proprietary DSP processing in portable racks for
all monitor systems. Custom cabling for systems
is available and can be pre-wired, labeled and
delivered in road cases.
As with all Clair Brothers products, the cabinet is
constructed of the finest Baltic birch and finished
with a rugged exterior epoxy to withstand the
most demanding conditions.

AUDIO SPECIFICATIONS

Loudspeaker Type

Two-Way Active

Frequency Response   50Hz–18kHz
Recommended Power Amplifier 1200W Peak @ 8 Ohms
Sensitivity(1Watt @ 1 Meter)

LF
HF

102 dB SPL
111 dB SPL

Maximum Output

Peak

131 dB SPL

Drivers LF
HF
(1) 12 in. (304.8mm)
(1) 2 in. (50.8mm)
Nominal Impedance LF
HF

8 Ohms
16 Ohms

Power Handling



LF
HF

300W Cont.
150W Cont.

Dispersion

  Proprietary Asymmetrical
Input/Output Connections Standard (2) EP-4 Connectors (2 Male)



MECHANICAL SPECIFICATIONS

Enclosure

Shell

Finish

18mm Baltic Birch
Black Epoxy Mastic
Grille   Perforated Steel, Foam Backed
Dimensions Height
Width
Depth
13.94 in. (354.0mm)
22.43 in. (569.7mm)
18.00 in. (457.2mm)
Weight   68 lbs. (30.8kg)
Shipping Weight   76 lbs. (34.5kg)
