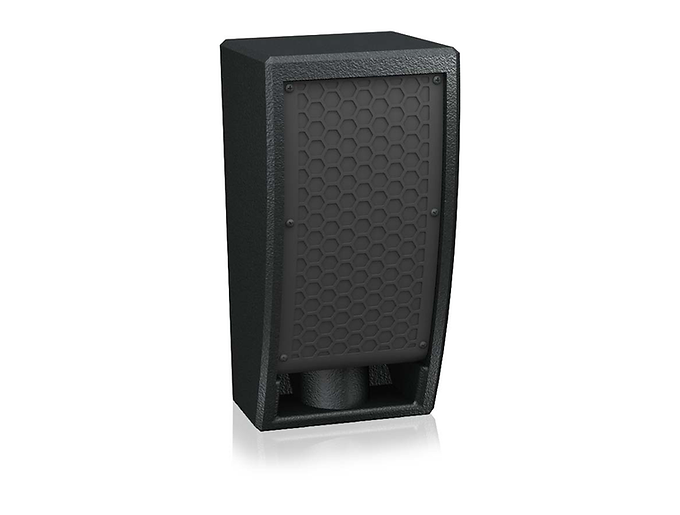

The Clair Brothers FX2
is a full range, passive
dual coaxial loudspeaker. FX2
is compact
(12.75” height, 6.25” width) and provides
a streamlined solution for distributing audio
in any small venue. The two coaxial drivers
are mounted on individual baffle boards, one
angled 30° compared to the other. This dual
driver configuration also permits independent
wiring configurations where amplitude
shading and frequency-limited beam steering
may become possible via DSP.
The FX2
’s combination of form and function
makes it the ideal choice for small theater
fills, distributed paging and music systems,
museum exhibits, conference rooms and
more. Its curved front-face styling blends in
with architectural features in your restaurant
or club, while delivering high quality audio to a
wide coverage area.

As with all Clair Brothers products, the FX2
is
constructed of the finest Baltic birch plywood
with a durable polyurea finish coating to
withstand the most demanding conditions.
The speaker grille is constructed of perforated
steel and backed with a high-grade reticulated
foam.
The FX2
has custom mounting and color
options making it perfect for any project. When
you need quality audio that complements any
décor, the FX2
is the smart choice.

AUDIO SPECIFICATIONS

Loudspeaker Type   Passive

Full Range, Dual Coaxial

Frequency Response

Single Cabinet

-10 dB Point

82Hz–20kHz
70Hz
Recommended Power Amplifier   100W Peak @ 8 Ohms
Sensitivity(1Watt @ 1 Meter)

Full Range

91 dB SPL

Maximum Output

Cont.
Peak

103 dB SPL
106 dB SPL

Drivers Full Range /
Coaxial
(2) 4 in. (101.6mm) Woofer
with 3/4” Silk Dome Tweeter
Nominal Impedance Full Range 1

4 Ohms 1

Power Handling



Cont.
Peak

50W
100W

Dispersion





100° H x 140° V



Input Connection

Standard

Optional2

(1) 2-Position Terminal Strip
[Custom2]



MECHANICAL SPECIFICATIONS

Enclosure

Shell

Finish

12mm Baltic Birch
Durable Polyurea Coating (black)

Rigging



(3) 1/4-20 Mounting Points (rear)

Grille   Perforated Steel, Foam Backed
Dimensions Height
Width
Depth
12.75 in. (323.9mm)
6.25 in. (158.8mm)
7.00 in. (177.8mm)
Weight   8 lbs. (3.6kg)
Shipping Weight   |TBD|
