kiT12 PLUS

General Description

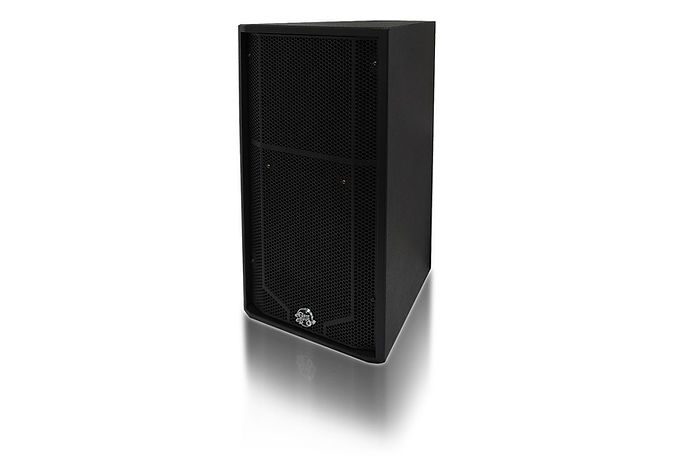

kiT12+ is a full range, high output loudspeaker
ideal for speech and music reproduction. The
kiT12+ is one of Clair Brothers most versatile full
range speakers.
Exceptional intelligibility, high output performance
and durability make the kiT12+ an excellent choice
for virtually any indoor or outdoor application.
The kiT12+ has been engineered for optimal
individual performance or as part of a multiple
cabinet system with added flexibility to mount
vertically or horizontally, or on pole mount with
subwoofer base. Ground stack and flown
applications with companion kiT Series subwoofers
are possible.
The cabinet features a custom 12” transducer and
one 2” exit/3” voice coil diameter+ high frequency
driver coupled to a 90º H x 40º V (or 60º H x 40º
V) rotatable constant directivity horn that delivers
naturally smooth uniform coverage in both nearfield and medium throw applications.

The kiT12+ is powered by an integrated 2 ch.
3200W power amplifier module that includes
internal DSP loudspeaker processing: Xover, EQ
and Limiter. The processing is factory programmed
and provides the user with the choice between four
presets that are specifically designed for various
applications and array configurations. High-pass
filter frequency may be set per application by
integrated factory presets. (See kiT+ Power Module
for detailed specifications on amplifier and dsp
modules).
For a cabinet of its size the kiT12+ offers extremely
efficient low-end response to 63Hz.
As with all Clair Brothers products, the kiT12+ is
constructed of the finest Baltic birch and finished
with a rugged polyurea coating to withstand the
most demanding conditions.
The speaker grille is constructed of high grade 14
gauge perforated steel with a powder coated finish.

AUDIO SPECIFICATIONS

Loudspeaker Type	Mobile	Two-Way Active / Passive
Frequency Response		63Hz–20kHz
Recommended Power Amplifier		1000-1200W @ 8 Ohms
Sensitivity(1Watt @ 1 Meter)	LF HF	98.5 dB SPL 100 dB SPL
Maximum Output	Peak	129 dB SPL
Drivers	LF HF	(1) 12 in. (304.8mm) (1) Exit 2 in. (50.8mm); VC diameter 3.0 (76.2mm)
Nominal Impedance	LF HF	8 Ohms 16 Ohms
Power Handling	LF HF	500W Cont. 150W Cont.
Dispersion	Standard Optional	90° H x 40° V (Rotatable) 60° H x 40° V (Rotatable)
Input Connection	Standard Optional	(2) XLRConnectors (1 XLR-F In, 1 XLR-M Thru) (2) PowerCon-20aConnectors (1 PowerIn, 1 PowerOut)

MECHANICAL SPECIFICATIONS

Enclosure	Shell Finish	18mm, 13-Ply Baltic Birch Durable Polyurea Coating
Grille		Perforated Steel, Foam Backed
Dimensions	Height Front Width Rear Width Depth	28.12 in. (714.6mm) 14.80 in. (376mm) 7.75 in. (197mm) 15.20 in. (385mm)
Weight		62 lbs. (28.1kg)
Shipping Weight		83 lbs. (37.6kg)
Rigging	–	–
